gpu-dso-stacker — GPU-Accelerated Deep Sky Object Stacker

Getting Started

Pre-built binaries available, or build from source for your exact GPU architecture.

Download the archive for your platform from the Releases page. GPU builds require an NVIDIA GPU and CUDA 12.x runtime. CPU builds have no GPU dependency.

CUDA Runtime Setup (GPU builds only)

GPU builds require the NVIDIA CUDA 12.x runtime. Any CUDA 12.x minor version works.

Debian / Ubuntu

# Install the cuda-keyring package (sets up the NVIDIA apt repository)
# Replace <distro> with: ubuntu2404, ubuntu2204, debian12, etc.
wget https://developer.download.nvidia.com/compute/cuda/repos/<distro>/x86_64/cuda-keyring_1.1-1_all.deb
sudo dpkg -i cuda-keyring_1.1-1_all.deb
sudo apt-get update

# Install the runtime libraries (no compiler needed)
sudo apt-get install cuda-cudart-12-9 libnpp-12-9

RHEL / Fedora

sudo dnf config-manager --add-repo \
  https://developer.download.nvidia.com/compute/cuda/repos/<distro>/x86_64/cuda-<distro>.repo
sudo dnf install cuda-cudart-12-9 libnpp-12-9

CUDA Runtime Setup (GPU builds only)

Download a CUDA Toolkit 12.x installer from the CUDA Toolkit Archive. During installation, select Custom and enable at minimum:

CUDA Runtime (cudart)
NPP (NVIDIA Performance Primitives)
Display Driver (if not already installed)

Alternatively, install silently from PowerShell after downloading the installer:

cuda_12.9.1_windows.exe -s cudart_12.9 npp_12.9 Display.Driver -n

Gatekeeper Workaround

macOS quarantines files downloaded from the internet. Since the binaries are not Apple-notarized, you need to clear the quarantine attribute before macOS will allow them to run.

mkdir -p ~/DSOStacker && curl -fL \
  https://github.com/gs18113/gpu-dso-stacker/releases/latest/download/dso-stacker-gui-macos-arm64-metal.tar.gz \
  | tar xz -C ~/DSOStacker \
  && xattr -cr ~/DSOStacker \
  && chmod +x ~/DSOStacker/DSOStacker ~/DSOStacker/_internal/bin/dso_stacker

Replace metal with cpu in the URL if you don't need Metal acceleration.

# GPU build (CUDA 12 toolkit required)
cmake -B build -DCMAKE_BUILD_TYPE=Release \
      -DCMAKE_CUDA_COMPILER=/usr/local/cuda/bin/nvcc
cmake --build build --parallel $(nproc)

# CPU-only build (no CUDA toolkit needed)
cmake -B build -DCMAKE_BUILD_TYPE=Release -DDSO_ENABLE_CUDA=OFF
cmake --build build --parallel $(nproc)

# Enable RAW camera file support (requires libraw-dev)
cmake -B build ... -DDSO_ENABLE_LIBRAW=ON

Prerequisites: CUDA Toolkit 12.x, CFITSIO, libtiff, libpng, CMake ≥ 3.18, LibRaw (optional)

# Install dependencies via vcpkg
vcpkg install cfitsio tiff libpng libraw --triplet x64-windows

# Configure
cmake -B build -G "Visual Studio 17 2022" -A x64 `
      -DCMAKE_TOOLCHAIN_FILE="$env:VCPKG_ROOT/scripts/buildsystems/vcpkg.cmake" `
      -DCMAKE_CUDA_COMPILER="C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v12.6/bin/nvcc.exe"

# Build
cmake --build build --config Release --parallel

Prerequisites: Visual Studio 2022, CUDA Toolkit 12.x, vcpkg

# Apple Silicon — Metal scaffold backend
cmake -B build -DCMAKE_BUILD_TYPE=Release \
      -DDSO_ENABLE_CUDA=OFF \
      -DDSO_ENABLE_METAL=ON
cmake --build build --parallel

# Select Metal backend at runtime
./build/dso_stacker -f frames.csv -o stacked.fits --backend metal

Metal backend is scaffolded. Currently falls back to the CPU pipeline while Metal kernels are ported incrementally.

Features

From raw FITS or camera RAW files to a finished stack — debayering, alignment, calibration, and integration in one pipeline.

GPU-Accelerated Pipeline

Every compute-heavy stage runs on CUDA — VNG debayer, Moffat convolution, Lanczos warp, and kappa-sigma / median / AAWA / entropy integration use double-buffered stream overlap for maximum GPU utilization.

Automatic Star Alignment

Moffat PSF convolution with adaptive sigma threshold detects stars per frame. Optional Levenberg-Marquardt Gaussian centroid fitting refines positions to ~0.01-0.05 pixel accuracy. Triangle-matching + RANSAC computes alignment transforms — auto-selecting from projective, bilinear, bisquared, or bicubic models based on star density for optimal field-curvature correction. Per-frame quality scoring (FWHM, roundness, star count) with optional automatic rejection of poor sub-frames.

RAW Camera File Support

Load CR2, NEF, ARW, DNG, and 12 other RAW formats directly via LibRaw. Raw Bayer mosaic extraction with per-channel black subtraction. Build with -DDSO_ENABLE_LIBRAW=ON.

Full Color Output

Bayer pattern auto-detection from FITS BAYERPAT keyword or RAW metadata. VNG demosaic produces separate R, G, B planes; all warp and integration stages run per-channel.

Drizzle (2× / 3×)

Sub-pixel dithering recovery via Fruchter & Hook drizzle algorithm. 2× or 3× output resolution with configurable drop fraction. Bayer Drizzle operates on raw CFA data for artifact-free full-color super-resolution.

Calibration Frames

Dark, flat, bias, and darkflat master generation via winsorized mean, median, or kappa-sigma stacking. Applied before debayering. Dead-pixel guard and flat normalization built-in.

Flexible Output Formats

FITS (FP32), TIFF (FP32/FP16/INT16/INT8 + none/zip/lzw/rle), PNG (8/16-bit). Format detected from file extension.

CPU & Apple Silicon

Full OpenMP-parallelized CPU path via --cpu. Metal backend scaffolded for Apple Silicon. CPU-only builds require no NVIDIA GPU or CUDA runtime.

White Balance

Camera, auto (gray-world), or manual per-channel white balance applied to raw Bayer mosaic before demosaicing for accurate color rendering.

Background Normalization

Per-channel or RGB background calibration normalizes sky brightness across frames before stacking. Essential for sessions with varying sky conditions.

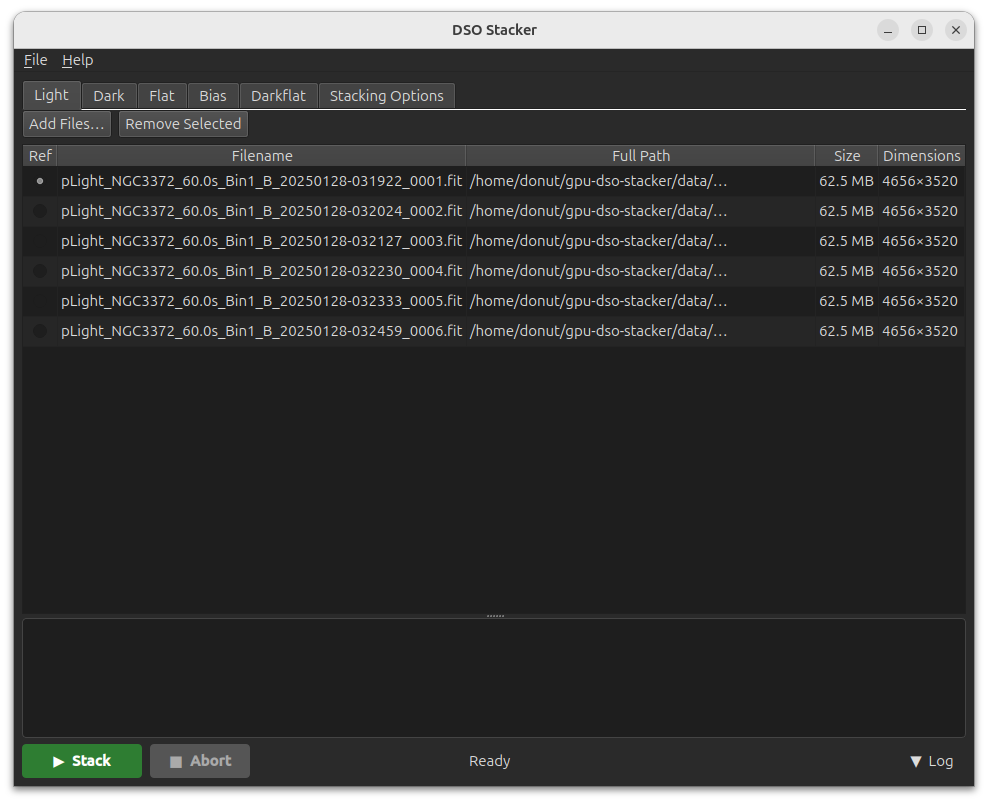

Desktop GUI

A PySide6 desktop app wrapping the CLI. Drag-and-drop frame management, all stacking options, and YAML project save/load.

Pre-built GUI bundles are available on the Releases page for Linux, Windows, and macOS. No Python installation required — just download, extract, and run.

• Drag-and-drop FITS or RAW files onto Light, Dark, Flat, Bias, or Darkflat tabs
• Async FITS metadata loading — UI never blocks
• Conditional option visibility based on integration method and output format
• YAML project files — save and reload complete state
• Live log output + abort support

Running from source

If you built the CLI from source, you can run the GUI directly with Python:

# Install Python deps
pip install PySide6 pyyaml

# Launch (expects ./build/dso_stacker to exist)
python src/GUI/main.py

CLI Usage

Point it at a 2-column CSV frame list and choose your options.

Input CSV format

filepath, is_reference
/data/frame1.fits, 1
/data/frame2.fits, 0
/data/frame3.fits, 0

Examples

GPU stack (default)

dso_stacker -f frames.csv -o stacked.fits

CPU-only

dso_stacker -f frames.csv -o stacked.fits --cpu

Color OSC camera (RGGB sensor)

dso_stacker -f frames.csv -o stacked.fits --bayer rggb --kappa 2.5 --iterations 5

With calibration frames

dso_stacker -f frames.csv -o stacked.fits \
    --bias  bias_frames.txt \
    --dark  dark_frames.txt \
    --flat  flat_frames.txt \
    --save-master-frames ./masters

16-bit TIFF with ZIP compression

dso_stacker -f frames.csv -o stacked.tiff --bit-depth 16 --tiff-compression zip

Output Formats

Extension	Format	Bit depths	Compression
`.fits` `.fit` `.fts`	FITS	f32 (always)	none
`.tif` `.tiff`	TIFF	f32, f16, 16, 8	none / zip / lzw / rle
`.png`	PNG	16, 8	lossless DEFLATE

Processing Pipeline

Six stages, two execution paths. Pass --cpu to run everything with OpenMP instead of CUDA.

#	Stage	GPU path (default)	CPU path (`--cpu`)
1	Debayering	VNG demosaic → luminance CUDA	VNG demosaic → luminance OpenMP
2	Star Detection	Moffat PSF conv + σ threshold CUDA	Moffat PSF conv + σ threshold OpenMP
2b	Centroid Refinement (optional)	LM Gaussian fitting CUDA	LM Gaussian fitting OpenMP
3	Alignment	Triangle matching + DLT CPU CUDA	Triangle matching + DLT CPU
4	Debayering (warp)	VNG → lum or R/G/B CUDA	VNG → lum or R/G/B OpenMP
5	Lanczos-3 Warp	`nppiRemap` + coord-map kernel CUDA	6-tap backward-map warp OpenMP
6	Integration	Mini-batch mean / κ-σ / median / AAWA / entropy CUDA	Mean / κ-σ / median / AAWA / entropy OpenMP

Single-pass loading — each frame file is opened exactly once. Star detection, alignment, and warping all complete before the next frame is loaded.

Mismatch handling — frames that fail alignment (too few stars or triangle-matching mismatch) are skipped gracefully.

Test Coverage

370+ tests across 21 suites. GPU tests auto-skip (exit 77) when no CUDA device is found.

Suite	Tests	Coverage
`test_cpu`	51	CSV parser, FITS I/O, integration (mean, kappa-sigma, median, AAWA, entropy), Lanczos CPU
`test_gpu`	5	GPU Lanczos
`test_star_detect`	31	CCL + CoM, Moffat conv + threshold
`test_centroid_lm`	9	LM Gaussian centroid fitting (CPU)
`test_frame_quality`	9	FWHM, roundness, background, composite scoring
`test_ransac`	23	DLT homography, triangle matching, RANSAC
`test_transform`	16	Polynomial transform eval, fit, auto-select
`test_debayer_cpu`	16	VNG debayer: all 4 Bayer patterns + edge cases
`test_integration_gpu`	11	GPU mini-batch kappa-sigma, median, AAWA, entropy
`test_calibration`	34	Dark/flat apply, masters, winsorized mean, median, kappa-sigma
`test_color`	33	Color output, fits_save_rgb, Bayer detection
`test_white_balance`	16	Bayer color LUT, wb_apply_bayer, wb_auto_compute
`test_image_io`	26	Format detection, FITS, TIFF, PNG, auto-stretch
`test_raw_io`	11	Extension detection, FITS fallback, RAW dispatch
`test_background`	11	bg_compute_stats, bg_normalize_cpu
`test_drizzle`	10	Drizzle init, identity 2x, subpixel shift, Bayer channels
`test_audit`	3	Integration stability, CCL large-frame, Lanczos baseline
`test_pipeline_cpu`	21	CPU pipeline end-to-end, calibration, color, drizzle
`test_pipeline_backend`	8	Backend dispatch, selection logic
`test_numerical`	16	Numerical precision, edge cases
`test_cross_stage`	11	Cross-stage integration tests

cd build && ctest --output-on-failure -V
